²  Element:  Metal Oxide
²  Coating:  Epoxy Resin
²  Filling: Epoxy Resin
²  Pipe: ABS pipe
²  Lead wire: PVC wire

l  Dissipation Constant: Ta: 25℃ = 2.5 mW/℃
l  Response Time: 2 sec
l  Resistance at 25℃ : 50kΩ
l  Resistance tolerance : ±1%
l  Operating temperature: -30~80℃
l  Application: Body temperature monitor

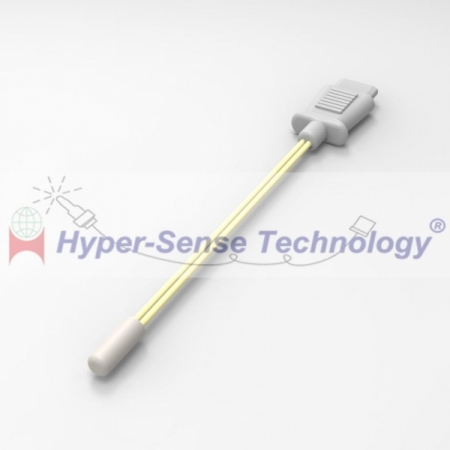

- The sensor unit was potted in mini ABS pipe, as a very small probe(1.8φ*6.3mm) to accelerate respond time and lower the dissipation constant. Thus, less influence will be made to measuring environment, and then it will have better temperature reading. With different connector, the sensor can be used in variable medical equipment to measure body temperature.
