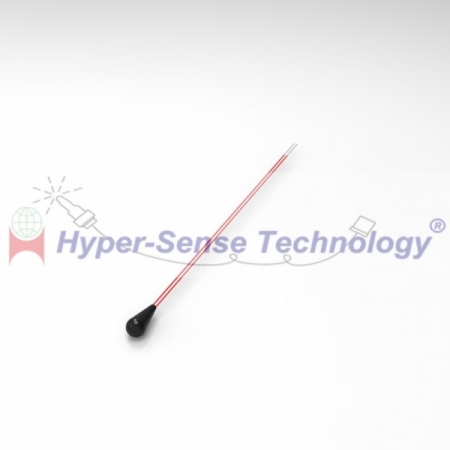

²  Element:  Metal Oxide
²  Coating:  Epoxy Resin
²  Lead wire: Enameled CP wire

l  Dissipation Constant: Ta: 25℃ = 0.7 mW/℃
l  Response Time: 0.8 sec
l  Resistance at 25℃ : 50kΩ
l  Resistance tolerance : ±1%
l  Operating temperature: -40 ~ 100℃
l  Application: Vital sign monitor, Thermometer



- For body temperature measurement, it should be accurate to reach 0.05℃ resolution within 32 ~ 42℃ range. This NTC chip is sorted at 37℃, to ensure the high accuracy with body temperature. Then it is soldered with enameled wire and coated with epoxy resin for insulation. This product thereafter is commonly used in digital thermometer and vital sign monitor. Precaution should be noted that the sensor has relatively weak mechanical property and may not withstand great pulling force onto it.
