²  Element:  Metal Oxide
²  Coating:  Epoxy Resin
²  Filling: Epoxy Resin
²  Pipe: SUS 316
²  Lead wire: UL2651

l  Dissipation Constant: Ta: 25℃ = 1.5 mW/℃
l  Response Time: 2 sec
l  Resistance at 25℃ : 50kΩ
l  Resistance tolerance : ±1%
l  Operating temperature: -30~100℃
l  Application: Vital sign monitor

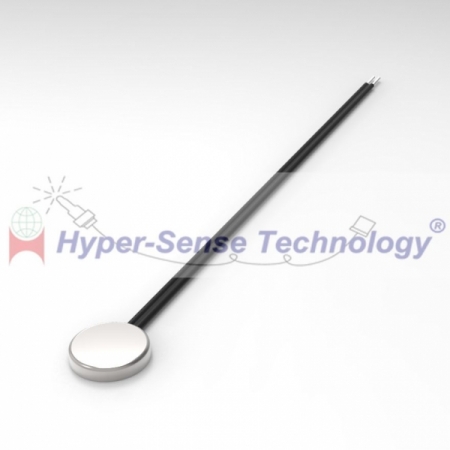

- Soldered with PVC cable, the sensor unit was then potted in a flat, circular metal body, mostly is composed of medical grade stainless steel (SUS 316).  The NTC element is sorted at 37℃, so the resolution can reach 0.1℃ within 32~42℃. It’s also very sensitive to surrounding temperature change and can be used in reusable continuous vital sign monitor, surface temperature measurement.
