²  Element:   Metal Oxide
²  Coating:  Silicone
²  Pipe: SUS304
²  Filling: Epoxy Resin, Black
²  Flange: Plastic
²  Lead wire: Teflon wire UL1332, #28-1C (White)

l  Dissipation Constant: Ta: 25℃ =2.3mW/℃
l  Response Time: 1 sec
l  Resistance at 25℃ : 10kΩ ~ 100kΩ
l  Resistance tolerance : ±1%,±2%,±3%,±5%
l  Operating temperature: -30 ~ 200℃
l  Application: Boiler, Coffee machine

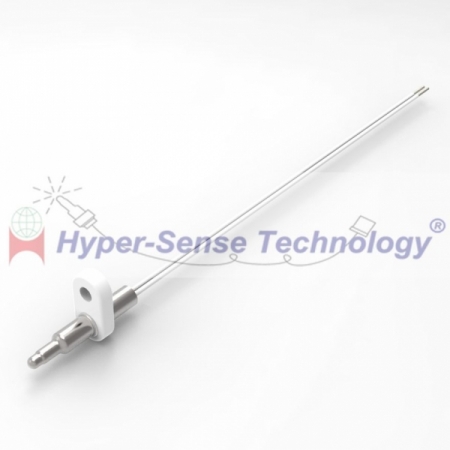

- Pointed head pipe makes it faster to detect surrounding temperature change. It has lowest response time and least impact to environment temperature.  Plastic flange is for screw fastening, however, operating temperature will be limited by this one. Glass encapsulation ensures the NTC element being in great stability and heat transmission. Teflon wire is adopted for its tolerance to wide operating temperature. Connector is replaceable, depending on different PCB and customer’s usage.
