²  Element:   Metal Oxide
²  Coating:  Epoxy Resin
²  Pipe: SUS304
²  Cover: Stainless steel with laser welding
²  Filling: Epoxy Resin, Black
²  Wire: PVC cable

l  Dissipation Constant: Ta: 25℃ = 5 mW/℃
l  Response Time: 20 sec
l  Resistance at 25℃ : 10kΩ ~ 100kΩ
l  Resistance tolerance : ±1%,±2%,±3%,±5%
l  Operating temperature: -30 ~ 105℃
l  Application: Water heater, Bottle warmer

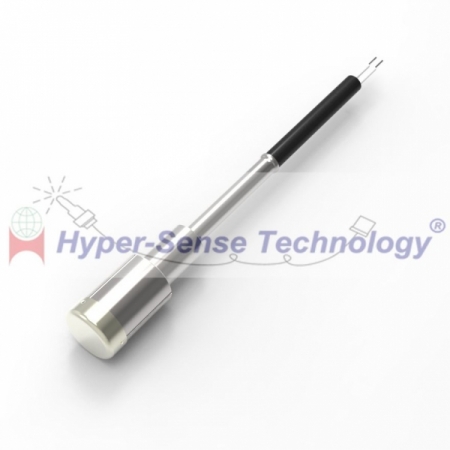

-  This customized sensor is composed of three parts: Aluminum cover, SUS304 pipe and lead wire. The design will be settled in deep water tank to measure temperature, and various shapes are for definite fit in the system. Glass bead element with silicone coating inside has great stability and performance in high temperature. Wire material is optional by customer’s operation temperature. Connector is selective as well.
