²  Element:   Metal Oxide
²  Coating:  Epoxy Resin
²  Filling: Epoxy Resin, Black
²  Pipe: Stainless Steel
²  Body: Plastic Molding
²  Heat shrinkable tube: Polyolefin
²  Lead wire: PVC wire

l  Dissipation Constant: Ta: 25℃ = 3 mW/℃
l  Response Time: 10 sec
l  Resistance at 25℃ : 10kΩ ~ 100kΩ
l  Resistance tolerance : ±1%,±2%,±3%,±5%
l  Operating temperature: -40 ~ 120℃
l  Application: Industry, Heater

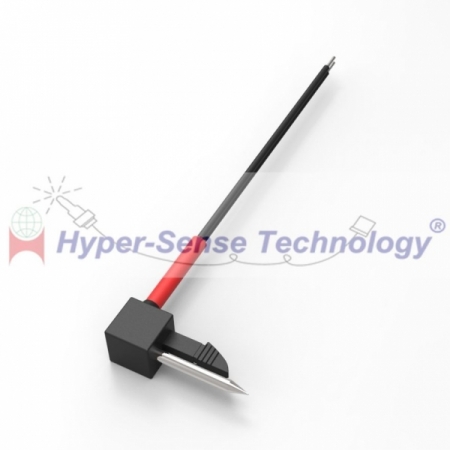

-  The NTC chip is soldered to PVC lead wire, and is potted in stainless steel pipe. The plastic molding body is customized design, for easy lock into the heating system. After Epoxy filling, the unit is put in the plastic injection machine for molding, which can adequately seal the pipe-wire junction. Different wire material and connector are available.
