²  Element:   Metal Oxide
²  Coating:  Heat conductive gel
²  Pipe: Ni-plated Brass
²  Filling: Silicone Resin, Gray
²  Tube: PTFE, Semitransparent
²  Lead wire: Teflon wire UL10362, #24-1C (White)

l  Dissipation Constant: Ta: 25℃ = 2 mW/℃
l  Response Time: 17 sec
l  Resistance at 25℃ : 10kΩ ~ 100kΩ
l  Resistance tolerance : ±1%,±2%,±3%,±5%
l  Operating temperature: -40 ~ 260℃
l  Application: Power supply, Industry, Temperature control system

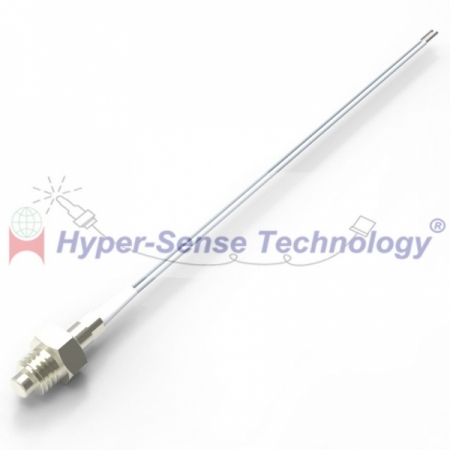

-  The NTC element is glass encapsulated to ensure good performance in high temperature and less oxidation. This unit is potted in Ni plated pipe, which increases the temperature tolerance to be over 200℃. The shape is variable by individual design and functional purpose. Epoxy resin is replaced by heat conductive gel and silicone glue for their stability in high working temperature. Teflon wire UL10362 is mainly used in high temperature application. Connector is optional, according to different PCB and customer’s usage.
